Tubular Solenoids

Tubular solenoids provide a fairly flat force stroke due to their tubular shape and plunger geometry.

How Does a Tubular Solenoid Work?

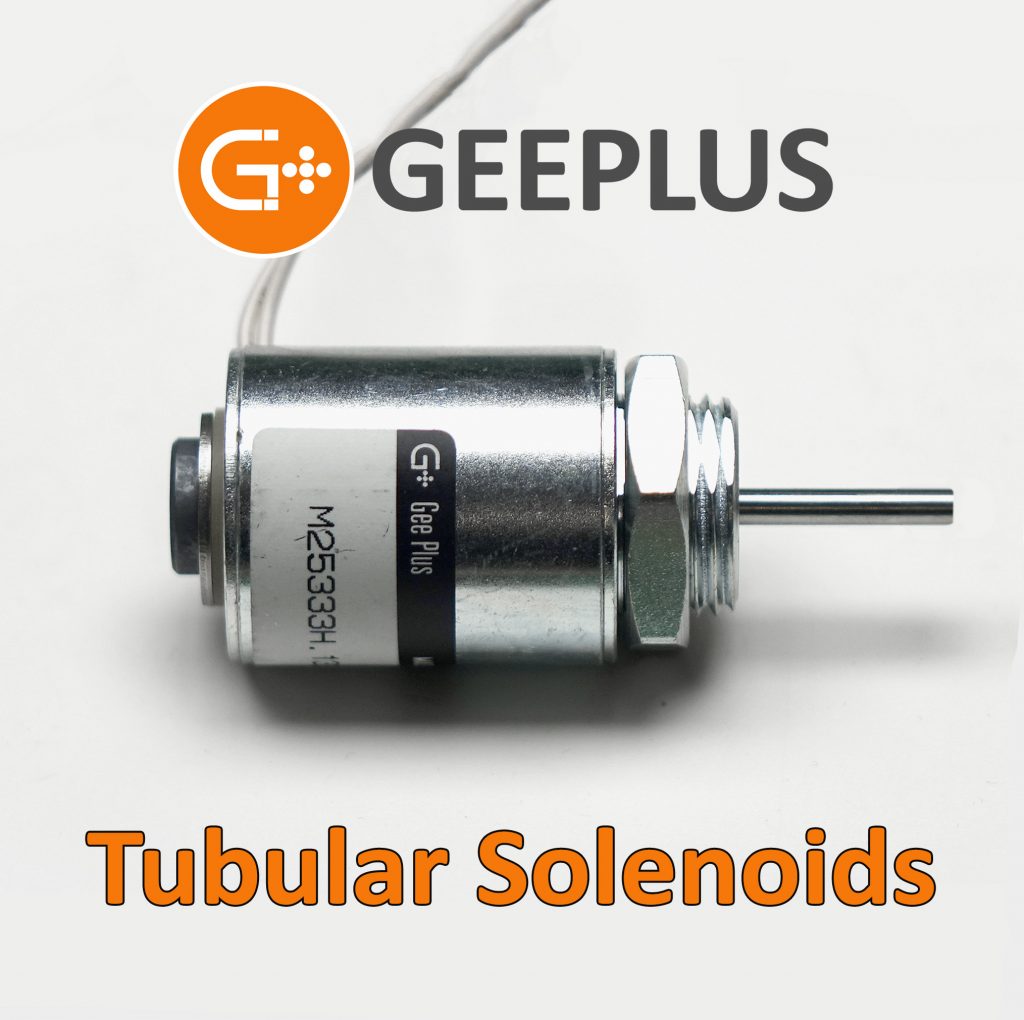

Tubular solenoids by GeeplusTubular Solenoids

Tubular solenoids, like other linear solenoids, are on/off type actuators that develop force in one direction when energized. The return force must be provided externally, via a return spring for instance. Tubular solenoids are especially optimized for long strokes.

Notable Characteristics of our Tubular Solenoids:

Stroke up to 30mm (depending on type)
 Optimized for long strokes
 Holding force up to 80N (in end-position, energized)
 High life expectancy: Up to 30 million+ cycles
 Pull and Push tubular versions available
 Custom solenoids available, including latching versions (permanent magnet)

Watch How a Tubular Solenoid Works

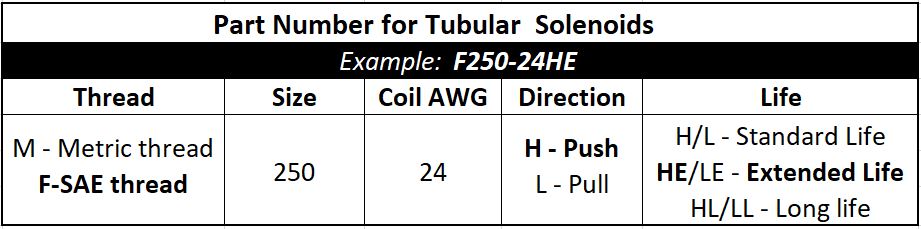

Geeplus Tubular Solenoid part number chart


ModelMoving ImageStroke (mm)Holding Force (N)Dimensions (mm)Weight (g)Data SheetDrawing 3D
L=Pull
H=Push
10% ED*100% ED*D x HOverallPlunger Pull/Push.PDF.igs
133-LTubular-Solenoid-133 GIF350.913 x 12154pdf logo3D logo
133-HTubular-Solenoid-133 GIF350.913 x 12152pdf logo3D logo
130-LTubular-Solenoid-130 GIF127313 x 27245pdf logo3D logo
130-HTubular-Solenoid-130 GIF127313 x 27244pdf logo3D logo
170-LTubular-Solenoid-170 moving GIF1273.517 x 27155pdf logo3D logo
170-HTubular-Solenoid-170 moving GIF1273.517 x 27154pdf logo3D logo
190-LTubular-Solenoid-190 GIF1318819 x 408220pdf logo3D logo
190-HTubular-Solenoid-190 GIF1318819 x 408216pdf logo3D logo
253-LTubular-Solenoid-253 GIF12351525 x 3012532pdf logo3D logo
253-HTubular-Solenoid-253 GIF12351525 x 3012519pdf logo3D logo
250-LTubular-Solenoid-250 moving GIF14382225 x 5118844pdf logo3D logo
250-HTubular-Solenoid-250 moving GIF14382225 x 5118835pdf logo3D logo
320-LTubular-Solenoid-320 Moving GIF18703532 x 5829954pdf logo3D logo
320-HTubular-Solenoid-320 Moving GIF18703532 x 5829953pdf logo3D logo
380-LTubular-Solenoid-M380 Moving GIF30805538 x 6449795pdf logo3D logo
