Push-Pull Solenoids

Push-pull solenoids are the most robust type of linear solenoids, providing a high holding force at a comparably low power input.

Selecting a Push-Pull Solenoid

Push/Pull Solenoids

Push Pull solenoids by GeeplusGeeplus’ push-pull solenoids incorporate an intelligent magnetic concept that allows a very high holding force at a comparably low power input. This makes them ideally suited for heavy duty applications, and those demanding low power consumption or low heat dissipation.

Like other linear solenoids, push-pull solenoids are on/off type actuators that develop force in one direction when energized. The return force must be provided externally, by a return spring for example.

NOTE: With Push-Pull Solenoids, the incorporation of a return spring is not recommended. Because an internal return spring will greatly affect the performance of these solenoids, it is recommended to incorporate the return force into the application as opposed to the solenoid if at all possible.

Inside of linear push pull solenoid

Properties of Push-Pull Solenoids:

Holding force up to 2000N

Stroke up to 30mm (depending on model)

High life expectancy: Up to 50 million cycles+

Fast response time: Switching times <5ms possible (depending on size and load)

Standard versions from 11mm to 87mm (diameter)

Geeplus Push Pull Solenoid part number chart

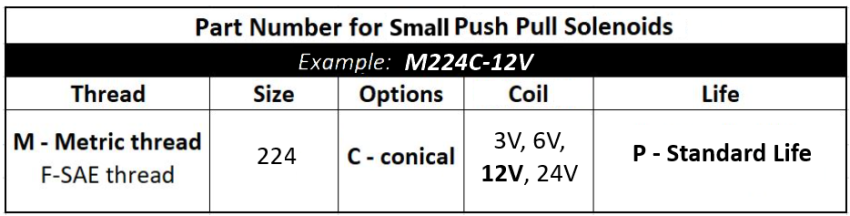

Part Numbers for Small Push Pull Solenoids


Push Pull Solenoids

ModelStroke Holding Force (N)Size (mm)Weight (g)Data Sheet3D Drawing
110C24.51.511 x 1371pdf logo
141C315514 x 14122.5pdf logo3D logo
144C512614 x 21183pdf logo
190C4155.519 x 13204pdf logo
191C4181019 x 13224pdf logo3D logo
191F3401719 x 13224pdf logo3D logo
192C4201019 x 18274.5pdf logo
194C5251819 x 27449pdf logo
221C5231222 x 18399pdf logo
224C6352122 x 286312pdf logo
250C5311625 x 164711pdf logo3D logo
250F3622225 x 16479pdf logo3D logo
251C5351525 x 164711pdf logo
300C5451830 x 155816pdf logo
301C6603030 x 155616pdf logo3D logo
301F31406030 x 155614pdf logo3D logo
304C5553230 x 217915pdf logo
341C6804034 x 189723pdf logo3D logo
341F320012034 x 189716pdf logo3D logo
401C61106041 x 2220060pdf logo3D logo
401F330019041 x 2220040pdf logo3D logo
490F349030049 x 2325056pdf logo3D logo
491C619010049 x 2826556pdf logo3D logo
491F349032049 x 2826560pdf logo3D logo
590C1231020059 x 30506120pdf logo3D logo
590F675050059 x 3050695pdf logo3D logo
591C1232020059 x 36620145pdf logo3D logo
591F678055059 x 36620140pdf logo3D logo
700C1250030070 x 381,013268pdf logo3D logo
700F101,00065070 x 381,013285pdf logo3D logo
870C1485050087 x 471,885495pdf logo3D logo
870F102,0001,20087 x 471,885480pdf logo3D logo
874C3095065087 x 823,000500pdf logo3D logo
874F142,0001,40087 x 823,000535pdf logo3D logo
